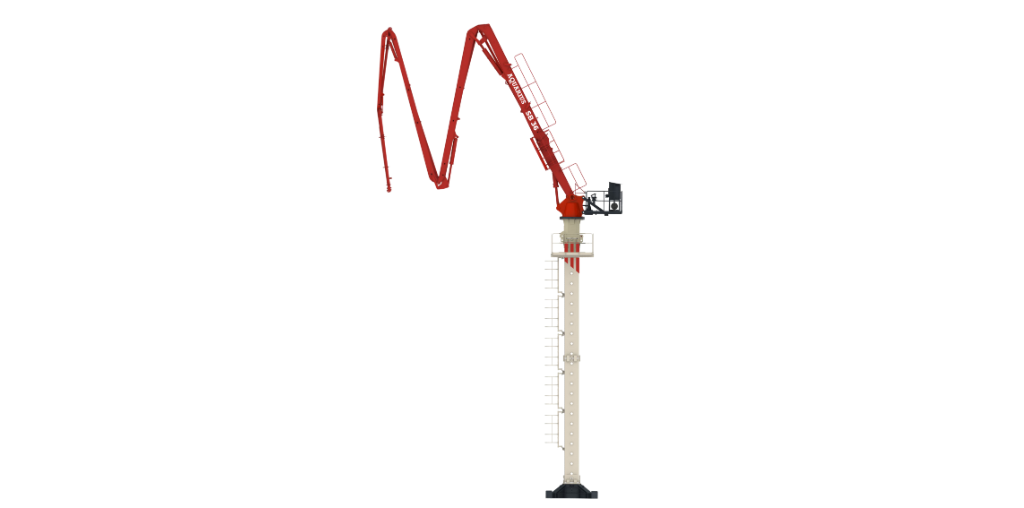

SB 36
Features
- Modular weight optimized design for easy installation via tower crane
- Radio remote as standard supply
- Easy installation in floors as well as in lift shafts
- Meets ASME B30.27-2014 Standard
Technical Specification
| Parameters | Unit | SB 36 | |
|---|---|---|---|
| Max. Vertical reach | mm | 36m | |
| Max. Horizontal Reach | mm | 36m | |
| Delivery Pipe Diameter | mm | 125 | |
| Slewing Range | deg | Free Slewing | |
| Each Section Length | 1st Arm 2nd Arm 3rd Arm 4th Arm |
mm mm mm mm |
13000 7500 7500 7800 |
| Weight Of Boom with pedastal | kg | 9000 | |
| Top mast(6m) | kg | 3100 | |
| Lower mast(6m) | kg | 2800 | |
| Counter Weight | No | No | |
| Drive | kW | 18.5kW/415V
3phase |
|
| End Hose | m | 4 | |
| Cross Base | – | Optional |
