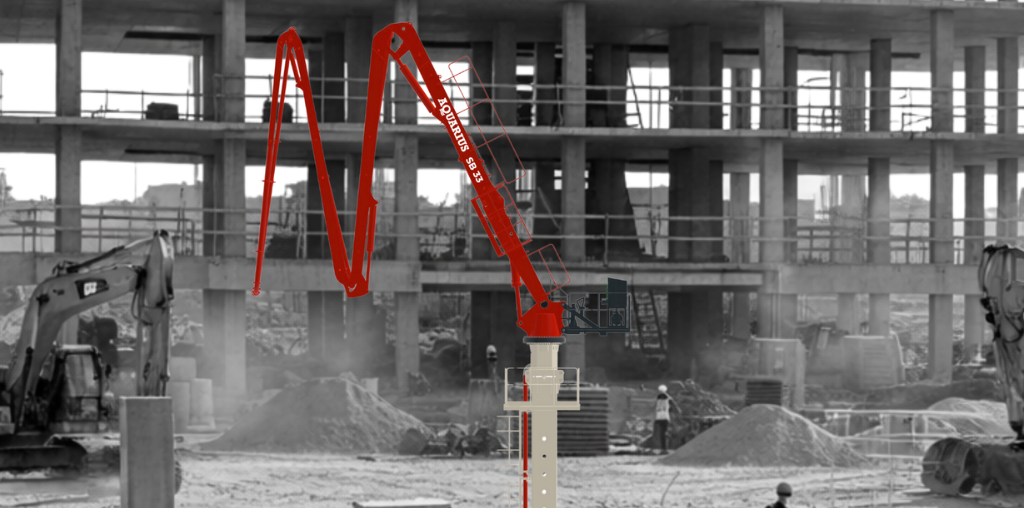

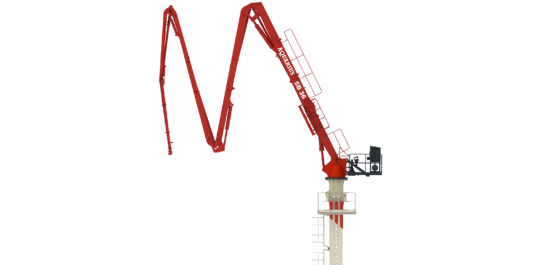

SB 33
Features
- Modular weight optimized design for easy installation via tower crane
- Radio remote as standard supply
- Easy installation in floors as well as in lift shafts
- Meets ASME B30.27-2014 Standard
Technical Specification
| Parameters | Unit | SB 33 | |
|---|---|---|---|
| Arms | 3 Arms (R Folding) | ||
| Max. Vertical reach | mm | 35m | |
| Max. Horizontal Reach | mm | 33m | |
| Working Range | mm | 3420m | |
| Machine Weight (TOTAL) | kg | 21,000 kg | |
| Counter Weight | NA | ||
| Electrical Power | kW | 415V, 50 Hz, 15kW | |
| Top mast(6m) | kg | 3100 | |
| End Hose Length | mm | 3m | |
| Mast Set | mm | 3 X 6 m | |
| Cross Base and anchor set | – | Optional | |
| Mast Hydraulic Climbing System | – | Included | |
| Remote Control | – | Radio Remote | |
| Weight of Heaviest Part | kg | 3100 kg |
