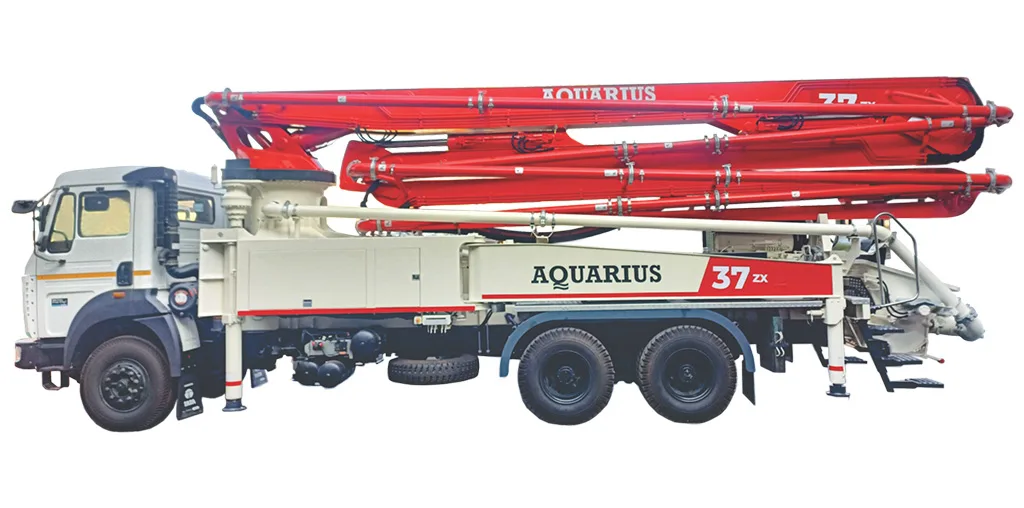

37 ZX
Features
- Two Layer Pipeline for Extended Life
- “Z” Fold Boom for Compact Deployment
- Splitter Gearbox Drive & Slave Engine Options
- Remote Control
Technical Specification
| Parameters | Unit | 37.09 zx | |
|---|---|---|---|
| Arms | No. | 4 | |
| Boom Folding | Z | ||
| Chassis Allowable GVW | kg | 28000 | |
| Horizontal Reach (max.) | m | 31.82 | |
| Vertical Reach (max.) | m | 36.75 | |
| Reach Depth | m | 23.7 | |
| Unfolding Height | m | 8.4 | |
| Slewing Range | deg | 365 | |
| Delivery Line Diameter | mm | 125 | |
| Length of End Hose (dn 125) | mm | 4 | |
| Max. Hydraulic Pressure | Bar | 360 | |
| Electrical System | V | 24 | |
| Power Drive | kw | 82 (Slave Engine) | |
| Optional Drive | Splitter GB |
*New regulation for two axle chassis (6X4) the GVW is specified as 28000kg
| CONCRETE PUMP | |||
|---|---|---|---|
| Model Specification | Unit | 37.09 zx | |
| Concrete Output Max. Theoretical | m3/hr | 85/58 | |
| Concrete Pressure Max. Theoretical | Bar | 54/80 | |
| No. of Strokes / Min | No. | 25/17 | |
| Delivery Cylinder Diameter | Mm | 230 | |
| Piston Stroke Length | Mm | 1400 | |
| Hydraulic Transmission Ratio (rod Side) | 1:6.5/1:4.37 | ||
| Easy Clean Hopper Capacity | L | 600 | |
| Water Tank Capacity | L | 205 |
Note: Performance of equipment is based on standard working conditions. Design / Specifications can be changed without prior notice
