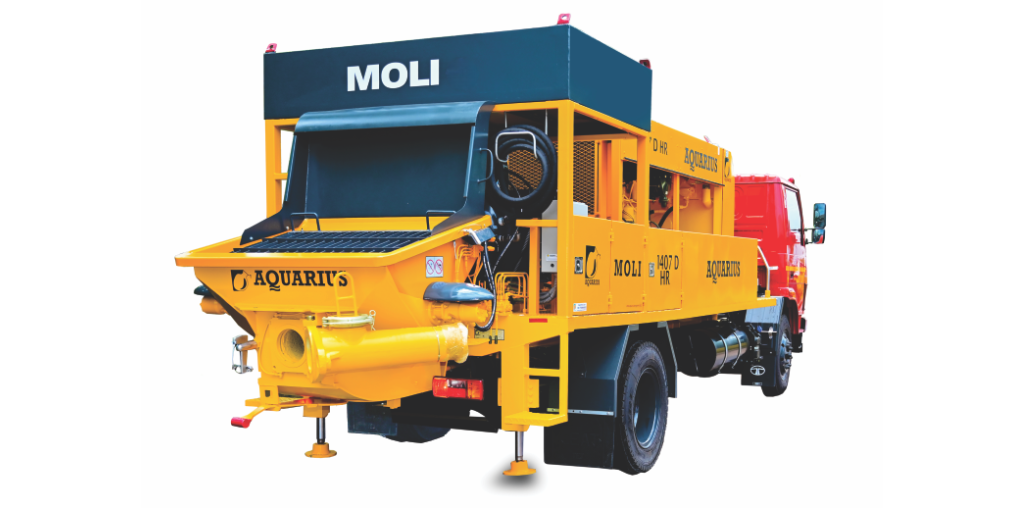

1407 D HR MOLI +
Features
- New Futuristic look with Latest Design
- Remote Control Operation
- Sturdy and rigid trailer frame with 4 nos. outriggers to achieve completely stable pumping
- Highly reliable equipment with longer maintenance intervals
- Uninterrupted operation possible with mechanical override on electrical system
- Lower number of strokes in its class resulting low wear part cost
Technical Specification
| Parameters | Unit | 1407 D HR MOLI + | |
|---|---|---|---|
| Prime Mover | kW | 132 | |
| Theoretical Output | m3/hr | 65 / 45* | |
| Del. Cylinder Diameter | mm | 200 | |
| Del. Cylinder Stroke | mm | 1400 | |
| No. of Strokes | per min | 25 / 17* | |
| Hydraulic Transmission | Road Side
Head Side |
1:4.9
1:3.3 |
|
| Concrete Pressure | bar | 71 / 106* | |
| Concrete Hopper Capacity | L | 600 | |
| Delivery Distance** | Horiz Vert |
m m |
600 150 |
| GVW | kg | 11000+ | |
| Wheel Base | Mm | 4500+ | |
| Chassis Frame Width | Mm | 860+ |
*Values for hydraulic fluid being fed to piston side.
**Distances to be read as either horizontal or vertical. The concrete should be pumpable & follows
DIN 1045 standard.
